Miscellaneous Vehicles and Equipment
Cable Equipment

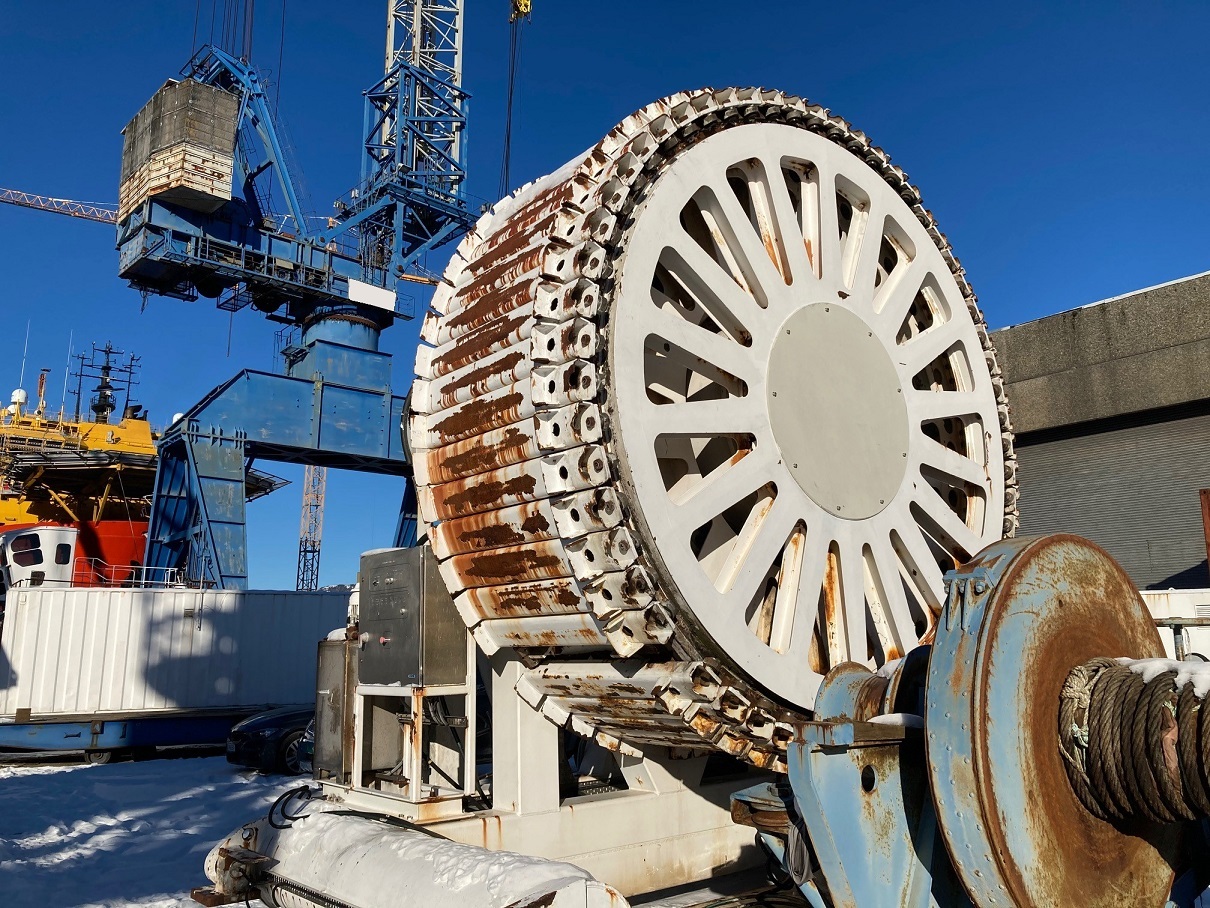

SMD Self Fleeting Drum Engine
This self fleeting drum engine has a max speed of 1 knot at maximum pull of 30 tonnes while the maximum continuous payout speed is 6 knots with a tension of 6 tonnes.

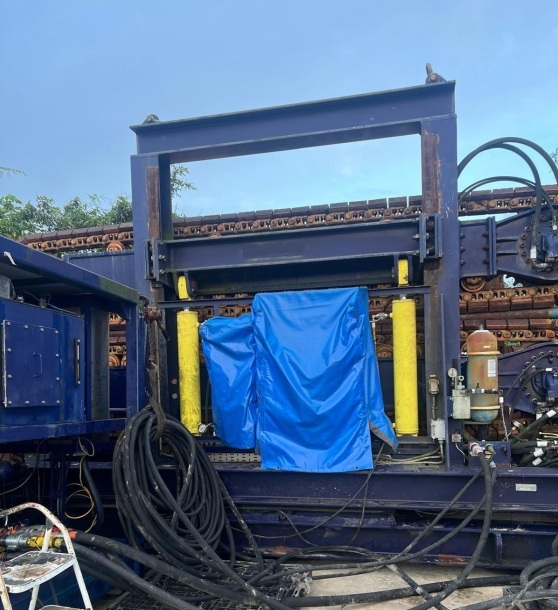

15T 2-Track Vertical Tensioner
Tracked tensioner with a PLC control system. Max pull (pay out from ideler end) is 15Te while the max pull (pay out from gearbox end) is 7.5Te. Laying speed is 18.33m/min (1100m.hr). Comes with HPU.

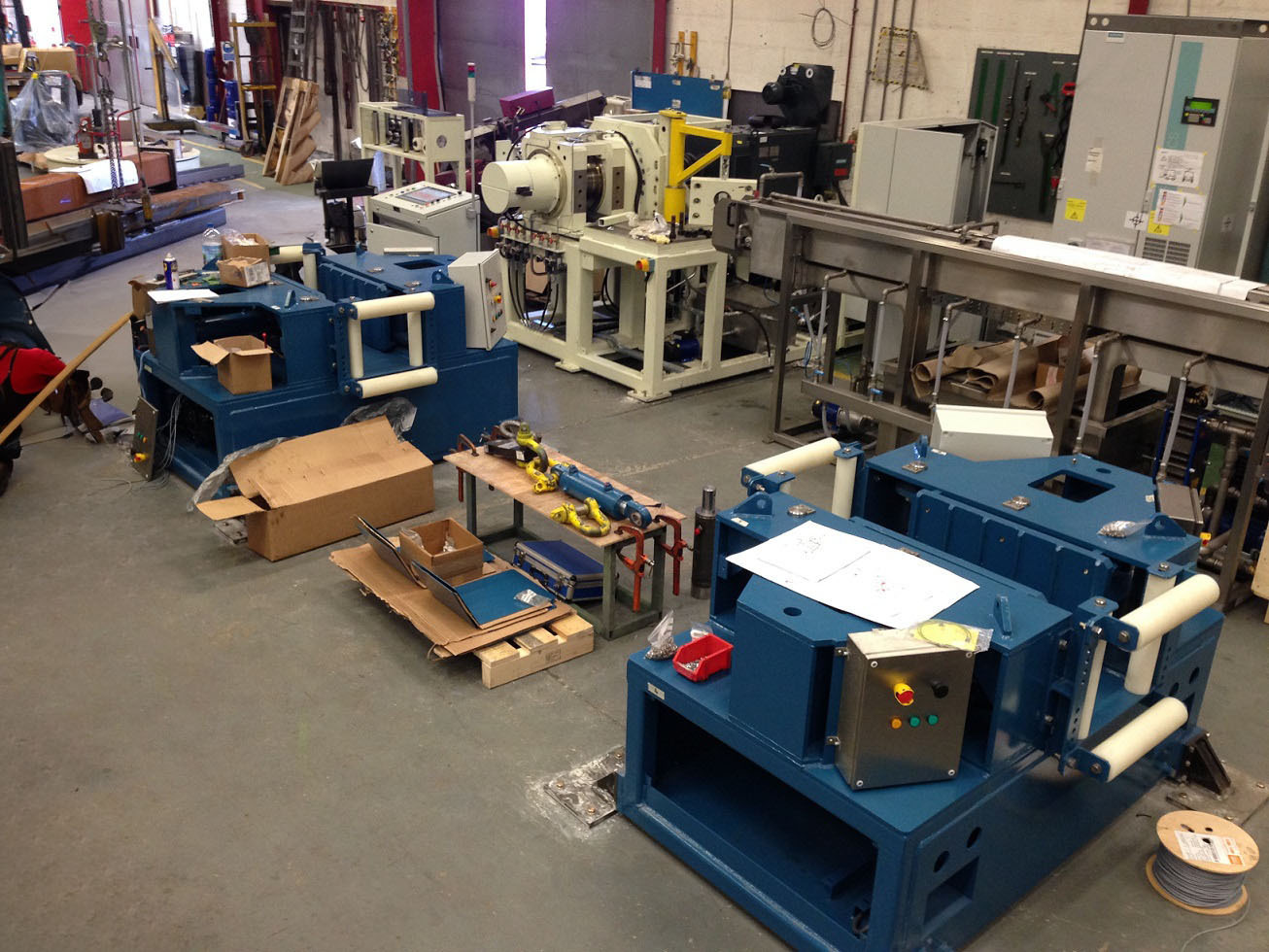

2 x Cable Arrestors
Used for offshore cable laying operations. Designed for use with a range of cable sizes from 25 to 200mm in diameter. These cable arrestors are capable of holding a 12,000kg pulling force.

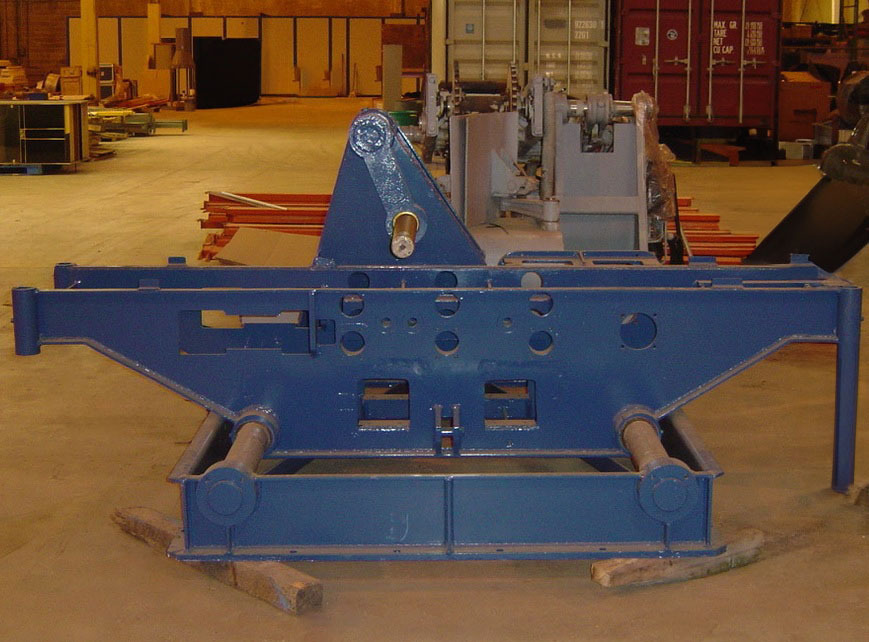

2 x DOHBs
These Draw-Off Hold-Back (DOHB) machines operate over a speed range of 0 to 6 knots and up to a maximum line tension of 3750lbs (3750lbs up to 1 knot and 600lbs at 6 knots).

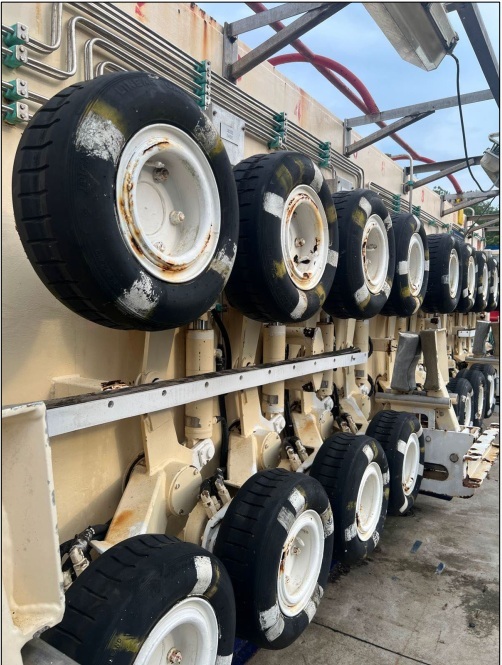

Hydralift Cable Equipment
Hydralift 12t Linear Cable Engine (LCE) and 4m Cable Drum Engine (CDE). System comes complete with control cabin.
